Pre-Assembled Strategy I Series 6" Speaker Package Meets Buy America Requirements

S162T-USA

  • UL Listed
  • CUL
  • BAA
  • TAA
  • 70V100VCAPABLE
DESCRIPTION

This model has been replaced by model FAP62T-USA

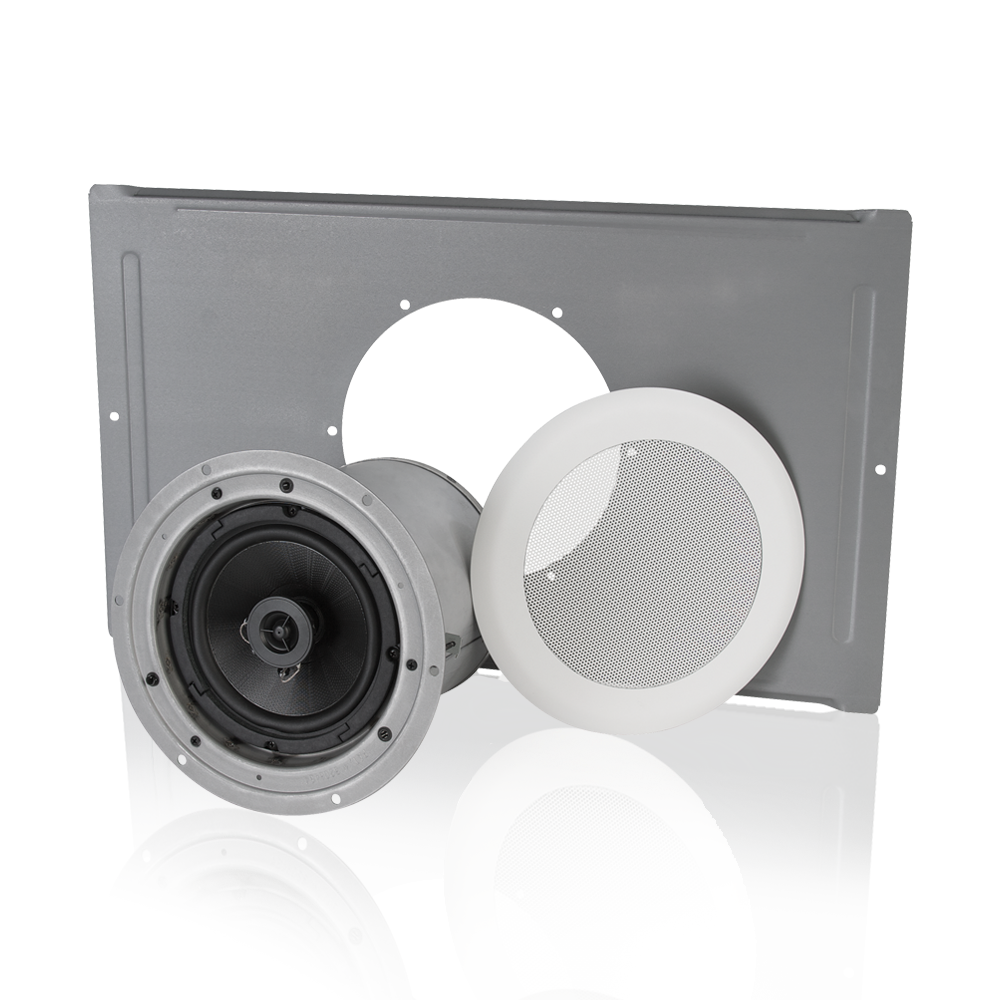

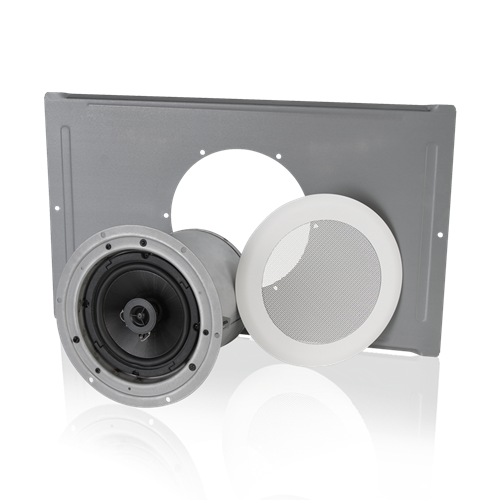

The S162T-USA Strategy Series speaker package includes premium- quality, state-of-the-art 6" Strategy products, in a simple to order, simple to install package. Each of the individual components in the package is UL1480 and UL2043 listed for general signaling and plenum ceiling installations.

The S162T-USA is assembled in AtlasIED's commercial manufacturing facility in Ennis, TX, one of ten working facilities around the United States by Atlas and the Mitek Communications Group.


Features
  • Labor Savings with Pre-Assembled Package
  • UL1480 and UL2043 Listed
  • Made and Assembled in the USA from Domestic and Foreign Parts.

SPECIFICATIONS
Power Rating 35 Watts RMS / 50 Watts Peak
Power Taps 1, 2, 4, & 8 Watts
Frequency Response 80Hz - 20kHz
Sensitivity 88dB Average
Diameter 7" (178mm)
Depth 7 5/8" (194mm)
Dispersion .17 ft³ (157.0 cm³)
