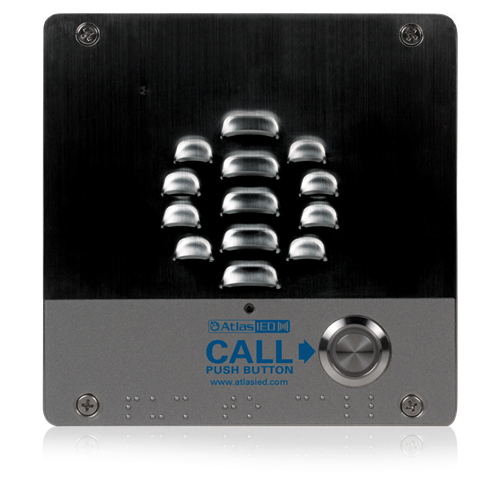

VoIP Outdoor Intercom Station (for SIP applications)

IPS-VOI

Availability: In stock
Your Price:
$1,358.99
  • GCK Optimized
  • Network Ready
  • PoE Enabled
  • SIP Compatible
  • TAA
    DESCRIPTION

    AtlasIED IPS-VOI indoor/outdoor vandal proof, weather resistant VoIP intercom station with call-in button leverages the VoIP communication solution to provide signaling and talkback in environments that are susceptible to damage from abuse, moisture, corrosion, dust, vibration and extreme temperature.

    AtlasIED IPS-VOI registers as a communication endpoint directly to a SIP based Communications System to provide signaling and talkback in areas such as guard gates, banks or financial institutions, distribution centers, manufacturing warehouses, correctional institutions, and detention facilities while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same VoIP intercom stations from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as supported devices within SRST endpoint architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability to extend LAN communication between any combination of phones and speakers with visual notifications is particularly critical during an emergency,which may be the actual cause of the WAN outage.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs; anywhere the need for critical alerts/public address exists and a single enterprise-class communications platform is preferred.

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    Features
    • IP 65 Rated
    • Adaptive Full-Duplex Voice Operation
    • Network Web Management
    • Network Adjustable Speaker Volume and Microphone Sensitivity
    • PoE 802.3af Enabled
    • SIP Compliant
    • Supports Cisco SRST
    • Doubles as a Paging Speaker
    • Dry Relay Contact for Auxiliary Control

    SPECIFICATIONS
    Ethernet I/F 10/100 Mbps
    Protocol SIP RFC 3261 Compatible
    Power Input PoE 802.3af Compliant or +8 to +12VDC @ 1000mA Regulated Power Supply
    Speaker Output 1 Watt Peak Power
    On-Board Relay 1A at 30 VDC
    Operating Temperature Range -10° to 50° C (14° to 122° F)
    Payload Types G711, A-law and μ-law
    Regulatory Compliance FCC Class A, UL 60950
    Width 5.12" (130.05mm)
    Height 5.12" (130.05mm)
    Depth 2.25" (57.15mm)
    Weight 2.0 lbs. (0.90kg)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES
    IPS-VOI Datasheet (4 pages) IPS-VOI Datasheet (4 pages)
    IPS-VOI Owners Manual (8 pages) IPS-VOI Owners Manual (8 pages)
