4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure

FAP42T side view

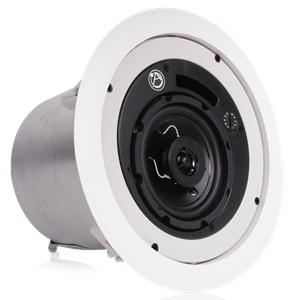

4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure - White
SKU: FAP42T
Availability: In stock
Your Price:
$153.99/each
Must purchase in multiples of 2
FAP42T-B side view
4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure - Black
SKU: FAP42T-B
Availability: In stock
Your Price:
$153.99/each
Must purchase in multiples of 2
  • UL Listed
  • CE
  • 70V / 100V Operation
  • HYFIDROPHOBIC_OPTIONAL
  • Non-Powered
  • Paintable
  • 8Ω Operation
    DESCRIPTION

    FAP42T combines superior coaxial speaker performance with wide dispersion and easy installation.

    A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.

    The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.


    Features
    • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
    • Press-Fit Grille Blends Perfectly into Contemporary Architecture

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average
    Power Taps 1, 2, 4, 8, 16 Watts & 8Ω
    Frequency Response 75Hz - 20kHz
    Dispersion 130
    Diameter 10 1/2" (26.67 cm)
    Certified to Safety Listing UL 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    FAP42T EASE DATA FAP42T EASE DATA
    FAP42T CAD Drawing FAP42T CAD Drawing
    FAP42 Construction Ring CAD Drawing FAP42 Construction Ring CAD Drawing
    FAP42T Revit Drawing FAP42T Revit Drawing
    FAP42T Data Sheet (4 pages) FAP42T Data Sheet (4 pages)

    Speaker Placement Tool

    The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    This tool is not suitable for sound masking. For assistance with sound masking, please complete our Sound Making Design Request form

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
    Your browser does not support the HTML5 canvas tag.
    Click Here to Download Offline Excel Version
